demo

RTR-L

Router> enable

Router# configure terminal

Router(config)#hostname RTR-L

RTR-L(config)#interface e0/1

RTR-L(config-if)#ip address 4.4.4.100 255.255.255.0

RTR-L(config-if)#no shutdown

RTR-L(config-if)#ip nat outside

RTR-L(config-if)#exit

RTR-L(config)#interface e0/0

RTR-L(config-if)#ip address 192.168.100.254 255.255.255.0

RTR-L(config-if)#no shutdown

RTR-L(config-if)#ip nat inside

RTR-L(config-if)#exit

RTR-L(config)#interface tunnel 1

RTR-L(config-if)#ip address 10.10.10.1 255.255.255.252

RTR-L(config-if)#tunnel destination 5.5.5.100

RTR-L(config-if)#tunnel source e0/1

RTR-L(config-if)#exit

RTR-L(config)#ip route 0.0.0.0 0.0.0.0 4.4.4.1

RTR-L(config)#router ospf 1

RTR-L(config-router)#router-id 4.4.4.100

RTR-L(config-router)#network 192.168.100.0 0.0.0.255 area 1

RTR-L(config-router)#netowrk 10.10.10.0 0.0.0.3 area 0

RTR-L(config-router)#passive-interface e0/0

RTR-L(config-router)#exit

RTR-L(config)#ntp server 192.168.100.200

RTR-L(config)#crypto isakmp policy 1

RTR-L(config-isakmp)#encryption aes 128

RTR-L(config-isakmp)#authentication pre-share

RTR-L(config-isakmp)#hash sha256

RTR-L(config-isakmp)#group 5

RTR-L(config-isakmp)#exit

RTR-L(config)#crypto isakmp key 12345 address 5.5.5.100

RTR-L(config)#crypto ipsec transform-set TS esp-aes esp-sha256-hmac

RTR-L(config-trans)#mode tunnel

RTR-L(config-trans)#exit

RTR-L(config)#crypto ipsec profile VPN

RTR-L(config-profile)#set transform-set TS

RTR-L(config-profile)#exit

RTR-L(config)#interface tunnel 1

RTR-L(config-if)#tunnel protection ipsec profile VPN

RTR-L(config-if)#exit

RTR-L(config)#access-list 1 permit 192.168.100.0 0.0.0.255

RTR-L(config)#ip nat inside source list 1 interface e0/1 overload

RTR-L(config)#ip nat inside source static tcp 192.168.100.100 22 4.4.4.100 2222 extendable

RTR-L(config)#ip nat inside source static tcp 192.168.100.200 53 4.4.4.100 53 extendable

RTR-L(config)#ip nat inside source static udp 192.168.100.200 53 4.4.4.100 53 extendable

RTR-L(config)#no ip http server

RTR-L(config)#ip nat inside source static tcp 192.168.100.100 5000 4.4.4.100 80 extendable

RTR-L(config)#ip nat inside source static tcp 192.168.100.100 5000 4.4.4.100 443 extendable

RTR-L(config)#ip access-list extended SERVICES

RTR-L(config-ext-nacl)#permit gre any any

RTR-L(config-ext-nacl)#permit esp any any

RTR-L(config-ext-nacl)#permit icmp any any

RTR-L(config-ext-nacl)#permit ospf any any

RTR-L(config-ext-nacl)#permit tcp any host 4.4.4.100 eq 53 www 443 2222

RTR-L(config-ext-nacl)#permit udp any host 4.4.4.100 eq 53

RTR-L(config-ext-nacl)#permit tcp any eq 53 host 4.4.4.100

RTR-L(config-ext-nacl)#permit udp any eq 53 123 host 4.4.4.100

RTR-L(config-ext-nacl)#permit udp any eq 500 any eq 500

RTR-L(config-ext-nacl)#exit

RTR-L(config)#interface e0/1

RTR-L(config-if)#ip access-group SERVICES in

RTR-L(config-if)#exit

RTR-L(config)#ip domain name int.demo.wsr

RTR-L(config)#ip name-server 192.168.100.200

RTR-L(config)#do wr

RTR-R

Router> enable

Router# configure terminal

Router(config)#hostname RTR-R

RTR-R(config)#interface e0/1

RTR-R(config-if)#ip address 5.5.5.100 255.255.255.0

RTR-R(config-if)#no shutdown

RTR-R(config-if)#ip nat outside

RTR-R(config-if)#exit

RTR-R(config)#interface e0/0

RTR-R(config-if)#ip address 172.16.100.254 255.255.255.0

RTR-R(config-if)#no shutdown

RTR-R(config-if)#ip nat inside

RTR-R(config-if)#exit

RTR-R(config)#interface tunnel 1

RTR-R(config-if)#ip address 10.10.10.2 255.255.255.252

RTR-R(config-if)#tunnel destination 4.4.4.100

RTR-R(config-if)#tunnel source e0/1

RTR-R(config-if)#exit

RTR-R(config)#ip route 0.0.0.0 0.0.0.0 5.5.5.1

RTR-R(config)#router ospf 1

RTR-R(config-router)#router-id 5.5.5.100

RTR-R(config-router)#network 172.16.100.0 0.0.0.255 area 2

RTR-R(config-router)#netowrk 10.10.10.0 0.0.0.3 area 0

RTR-R(config-router)#passive-interface e0/0

RTR-R(config-router)#exit

RTR-R(config)#ntp server 192.168.100.200

RTR-R(config)#crypto isakmp policy 1

RTR-R(config-isakmp)#encryption aes 128

RTR-R(config-isakmp)#authentication pre-share

RTR-R(config-isakmp)#hash sha256

RTR-R(config-isakmp)#group 5

RTR-R(config-isakmp)#exit

RTR-R(config)#crypto isakmp key 12345 address 4.4.4.100

RTR-R(config)#crypto ipsec transform-set TS esp-aes esp-sha256-hmac

RTR-R(config-trans)#mode tunnel

RTR-R(config-trans)#exit

RTR-R(config)#crypto ipsec profile VPN

RTR-R(config-profile)#set transform-set TS

RTR-R(config-profile)#exit

RTR-R(config)#interface tunnel 1

RTR-R(config-if)#tunnel protection ipsec profile VPN

RTR-R(config-if)#exit

RTR-R(config)#access-list 1 permit 172.16.100.0 0.0.0.255

RTR-R(config)#ip nat inside source list 1 interface e0/1 overload

RTR-R(config)#ip nat inside source static tcp 172.16.100.100 22 5.5.5.100 2244 extendable

RTR-R(config)#no ip http server

RTR-R(config)#ip nat inside source static tcp 172.16.100.100 5000 5.5.5.100 80 extendable

RTR-R(config)#ip nat inside source static tcp 172.16.100.100 5000 5.5.5.100 443 extendable

RTR-R(config)#ip access-list extended SERVICES

RTR-R(config-ext-nacl)#permit gre any any

RTR-R(config-ext-nacl)#permit esp any any

RTR-R(config-ext-nacl)#permit icmp any any

RTR-R(config-ext-nacl)#permit ospf any any

RTR-R(config-ext-nacl)#permit tcp any host 5.5.5.100 eq www 443 2244

RTR-R(config-ext-nacl)#permit udp any eq 500 any eq 500

RTR-R(config-ext-nacl)#exit

RTR-R(config)#interface e0/1

RTR-R(config-if)#ip access-group SERVICES in

RTR-R(config-if)#exit

RTR-R(config)#ip domain name int.demo.wsr

RTR-R(config)#ip name-server 192.168.100.200

RTR-R(config)#do wr

ISP

Login: root

Password: toor

#echo "ISP" > /etc/hostname && reboot

#vim /etc/network/interfaces

{press i}

auto ens3
auto ens4
auto ens5
iface ens3 inet static
    address 3.3.3.1
    netmask 255.255.255.0
    dns-nameservers 127.0.0.1
iface ens4 inet static
    address 4.4.4.1
    netmask 255.255.255.0
iface ens5 inet static
    address 5.5.5.1
    netmask 255.255.255.0

{press Esc}
:wq

#echo "net.ipv4.ip_forward=1" >> /etc/sysctl.conf

#reboot

#vim /etc/bind/named.conf.options

изменяем:

dnssec-validation auto; -> dnssec-validation no;

{press Esc}
:wq

#vim /etc/bind/named.conf.local


zone "demo.wsr" {
    type master;
    file "/etc/bind/db.demo.wsr";
    allow-query { any; };
    allow-transfer { 4.4.4.100; };
};

{press Esc}
:wq

#cp /etc/bind/db.empty /etc/bind/db.demo.wsr

#vim /etc/bind/db.demo.wsr


                                                                     ->
$TTL	86400                                                         | $TTL    86400
@	IN	SOA	localhost. root.localhost. (                  | @   IN  SOA demo.wsr. root.demo.wsr. (
                  1		; Serial                              |                1		; Serial
             604800		; Refresh                             |           604800		; Refresh
              86400		; Retry                               |            86400		; Retry
            2419200		; Expire                              |          2419200		; Expire
              86400 )	; Negative Cache TTL                          |            86400     	; Negative Cache TTL
;                                             		              | )
@	IN	NS	localhost.                                    | ;
                                                                      | @    IN  NS  isp
                                                                      | int  IN  NS  srv.int
                                                                      |
                                                                      | srv.int  IN  A   4.4.4.100
                                                                      | isp  IN  A   3.3.3.1
                                                                      | www  IN  A   3.3.3.1 [ЕСЛИ НАСТРОЕН NGINX!!]
                                                                      | www  IN  A   4.4.4.100
                                                                      | www  IN  A   5.5.5.100
                                                                      | internet IN  CNAME   isp
{press Esc}
:wq

#systemctl restart {bind9 or named}

#vim /etc/chrony/chrony.conf

Удаляем все записи peer, pool, server и добавляем:

server 127.0.0.1 iburst trust
local stratum 4
allow 4.4.4.100
allow 3.3.3.10

{press Esc}
:wq

#systemctl restart {chrony or chronyd}

#cp /etc/nginx/sites-available/default /etc/nginx/sites-available/demo.wsr

#vim /etc/nginx/sites-available/demo.wsr

изменяем:

upstream www.demo.wsr {
    server 4.4.4.100:80 max_fails=2 fail_timeout=10s;
    server 5.5.5.100:80 max_fails=2 fail_timeout=10s;
}

server {
    listen 80;

    server_name www.demo.wsr;

    location / {
        proxy_pass http://www.demo.wsr;
    }
}

{press Esc}
:wq

#ln -s /etc/nginx/sites-available/demo.wsr /etc/nginx/sites-enable/demo.wsr

#nginx -t

#systemctl restart nginx

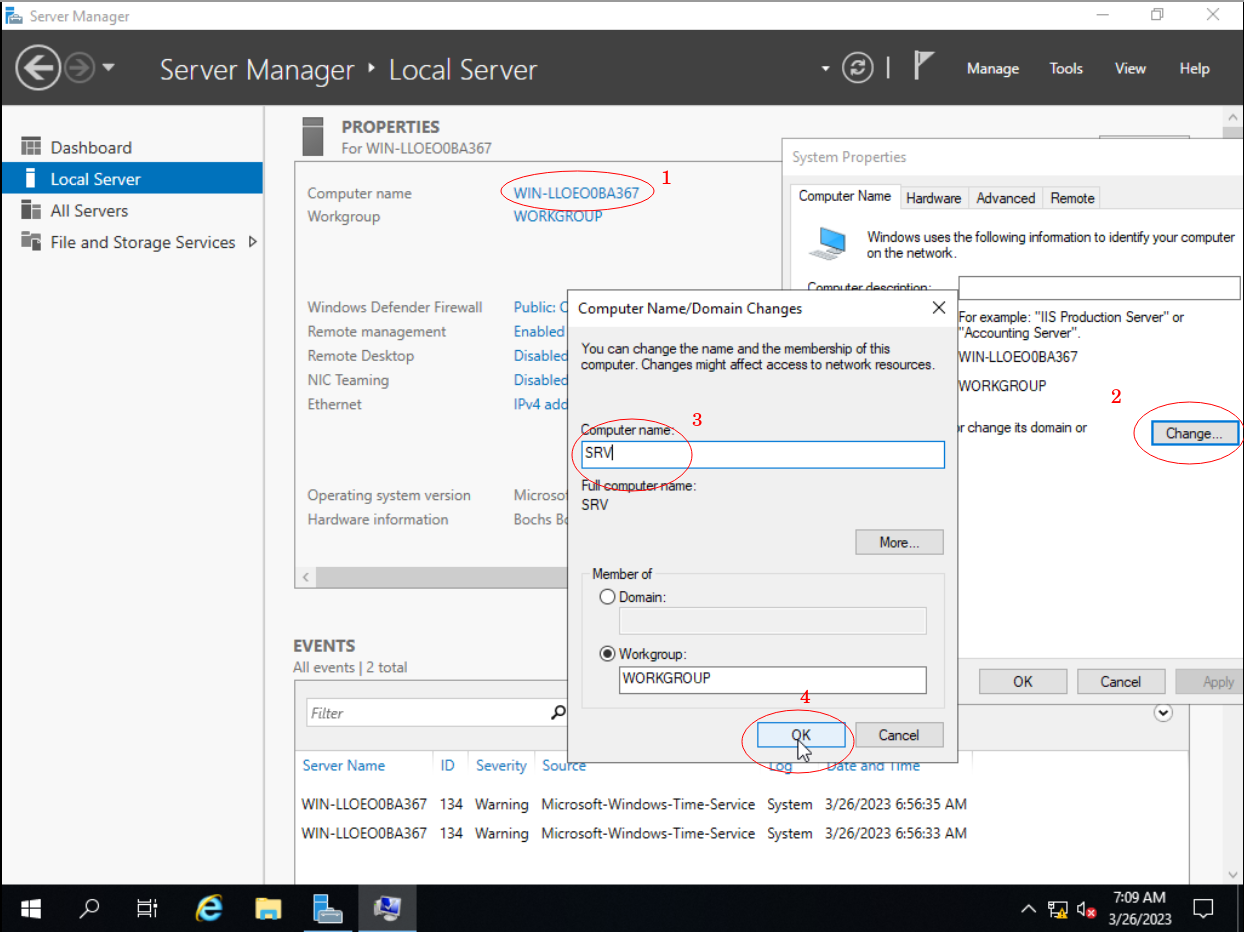

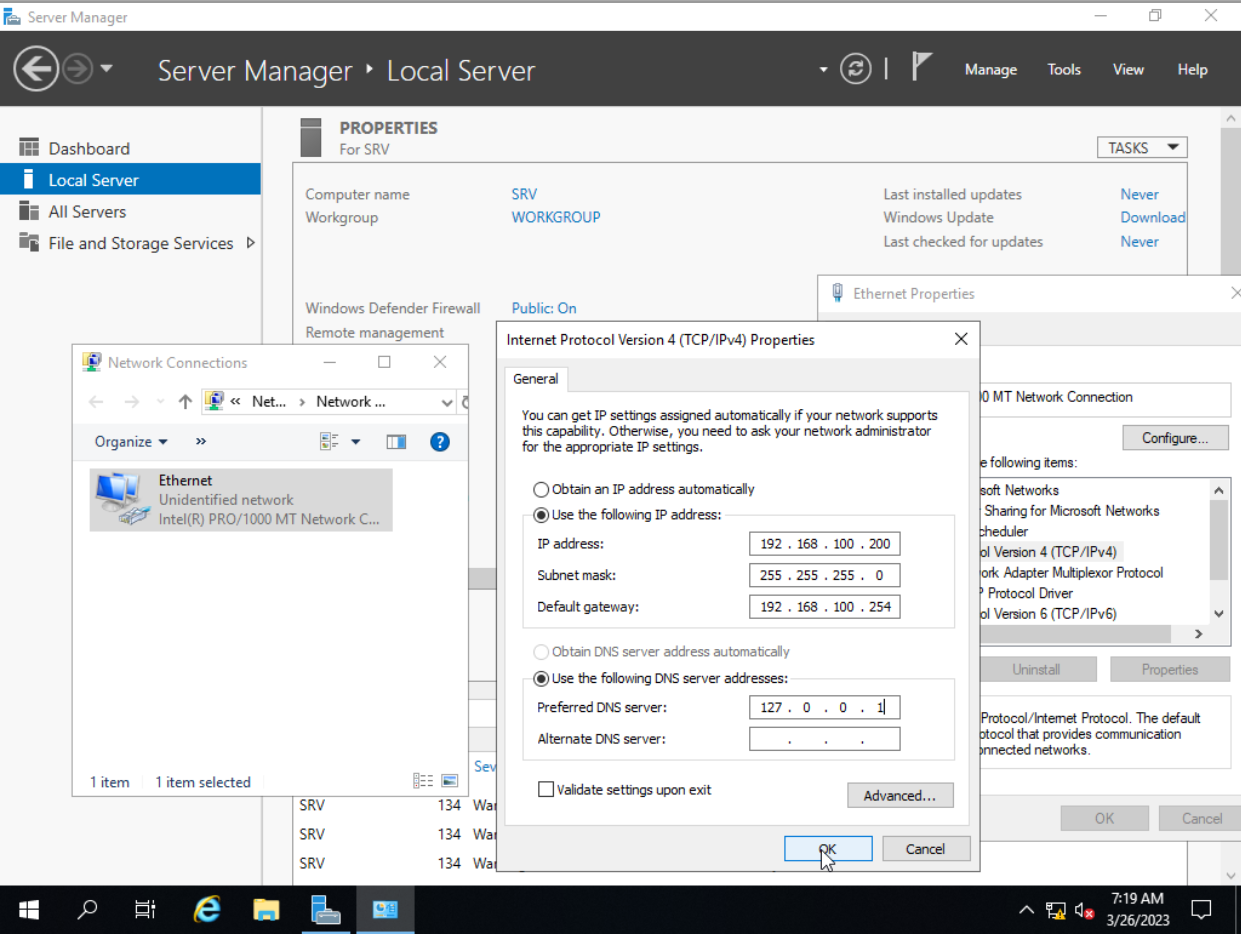

SRV

DNS

Запускаем PowerShell(от имени Администратора):

Install-WindowsFeature -Name DNS -IncludeManagementTools

Add-DnsServerPrimaryZone -Name "int.demo.wsr" -ZoneFile "int.demo.wsr.dns"

Add-DnsServerPrimaryZone -NetworkId 192.168.100.0/24 -ZoneFile "int.demo.wsr.dns"

Add-DnsServerPrimaryZone -NetworkId 172.16.100.0/24 -ZoneFile "int.demo.wsr.dns"

Add-DnsServerForwarder -IPAddress 3.3.3.1

Set-DnsServerRecursion -Enable $true

Add-DnsServerResourceRecordA -Name "web-l" -ZoneName "int.demo.wsr" -AllowUpdateAny -IPv4Address "192.168.100.100" -CreatePtr

Add-DnsServerResourceRecordA -Name "web-r" -ZoneName "int.demo.wsr" -AllowUpdateAny -IPv4Address "172.16.100.100" -CreatePtr

Add-DnsServerResourceRecordA -Name "srv" -ZoneName "int.demo.wsr" -AllowUpdateAny -IPv4Address "192.168.100.200" -CreatePtr

Add-DnsServerResourceRecordA -Name "rtr-l" -ZoneName "int.demo.wsr" -AllowUpdateAny -IPv4Address "192.168.100.254" -CreatePtr

Add-DnsServerResourceRecordA -Name "rtr-r" -ZoneName "int.demo.wsr" -AllowUpdateAny -IPv4Address "172.16.100.254" -CreatePtr

Add-DnsServerResourceRecordCName -Name "webapp1" -HostNameAlias "web-l.int.demo.wsr" -ZoneName "int.demo.wsr"

Add-DnsServerResourceRecordCName -Name "webapp2" -HostNameAlias "web-r.int.demo.wsr" -ZoneName "int.demo.wsr"

Add-DnsServerResourceRecordCName -Name "ntp" -HostNameAlias "srv.int.demo.wsr" -ZoneName "int.demo.wsr"

Add-DnsServerResourceRecordCName -Name "dns" -HostNameAlias "srv.int.demo.wsr" -ZoneName "int.demo.wsr"

NTP

[PowerShell]

New-NetFirewallRule -DisplayName "NTP" -Direction Inbound -LocalPort 123 -Protocol UDP -Action Allow

Start-Service W32Time

w32tm /config /manualpeerlist:4.4.4.1 /syncfromflags:manual /reliable:yes /update

Restart-Service W32Time

w32tm /resync

Диски

Заходим в Disk Management(ПКМ по Пуску)

Переводим 2 диска в состояне online

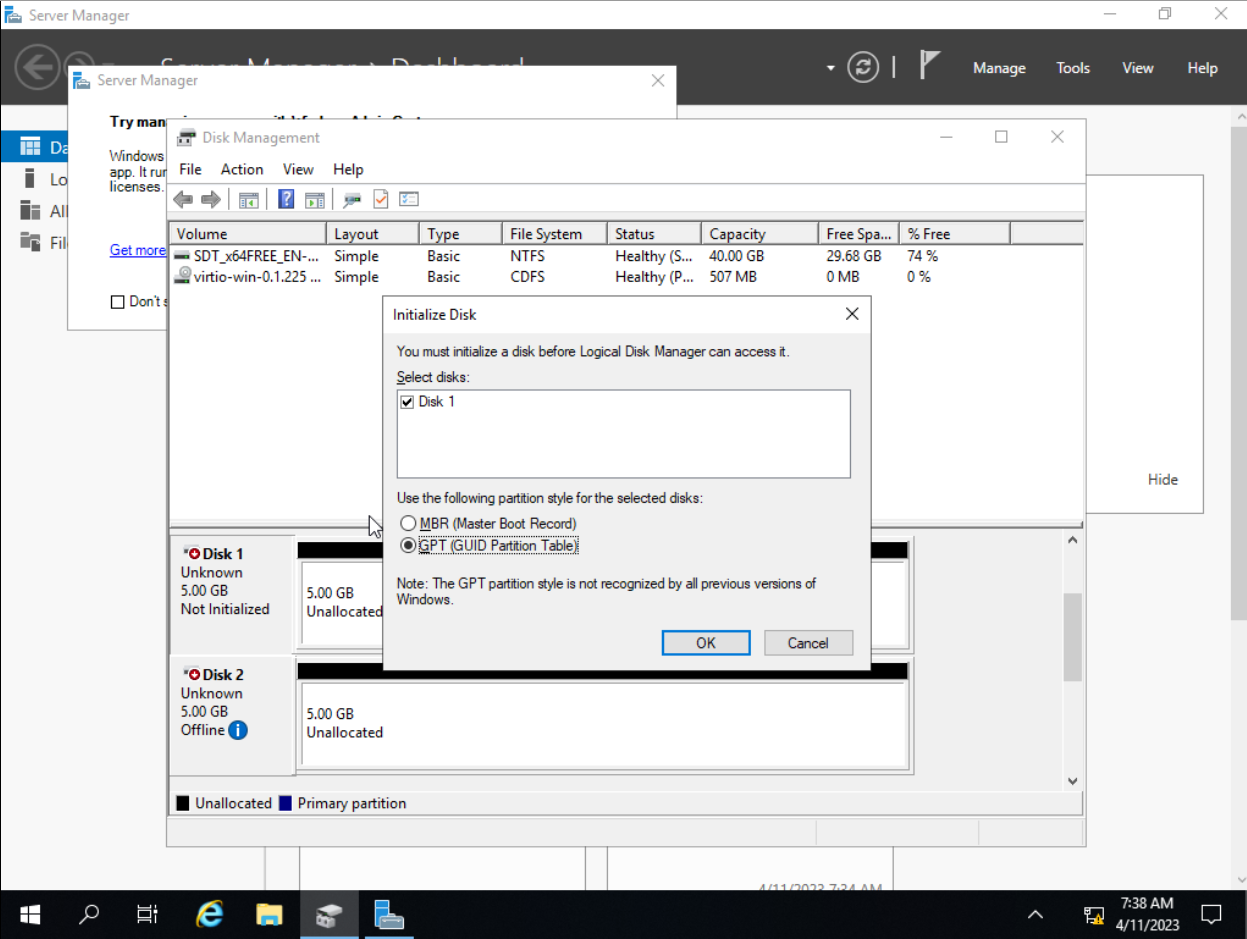

Инициализировать диски

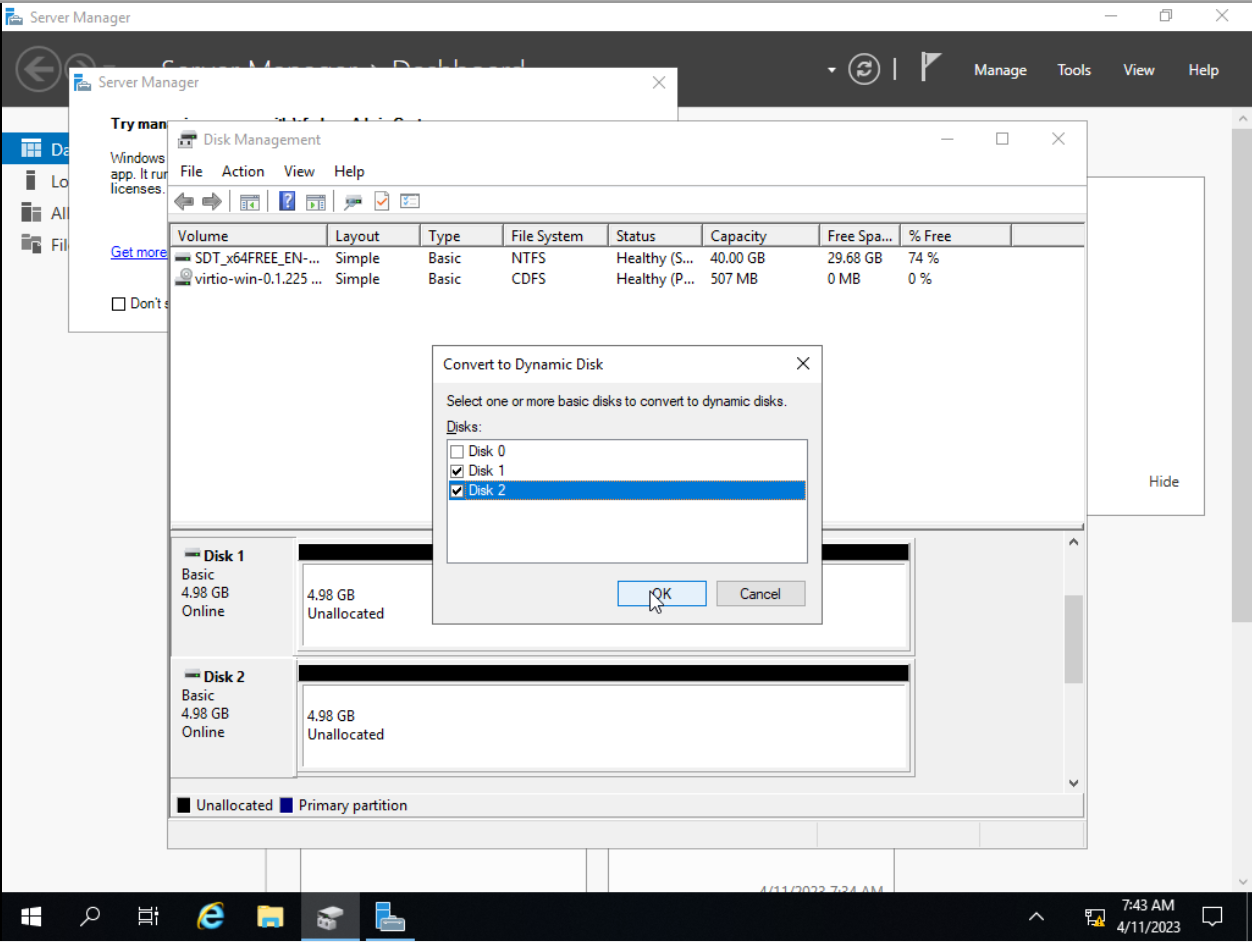

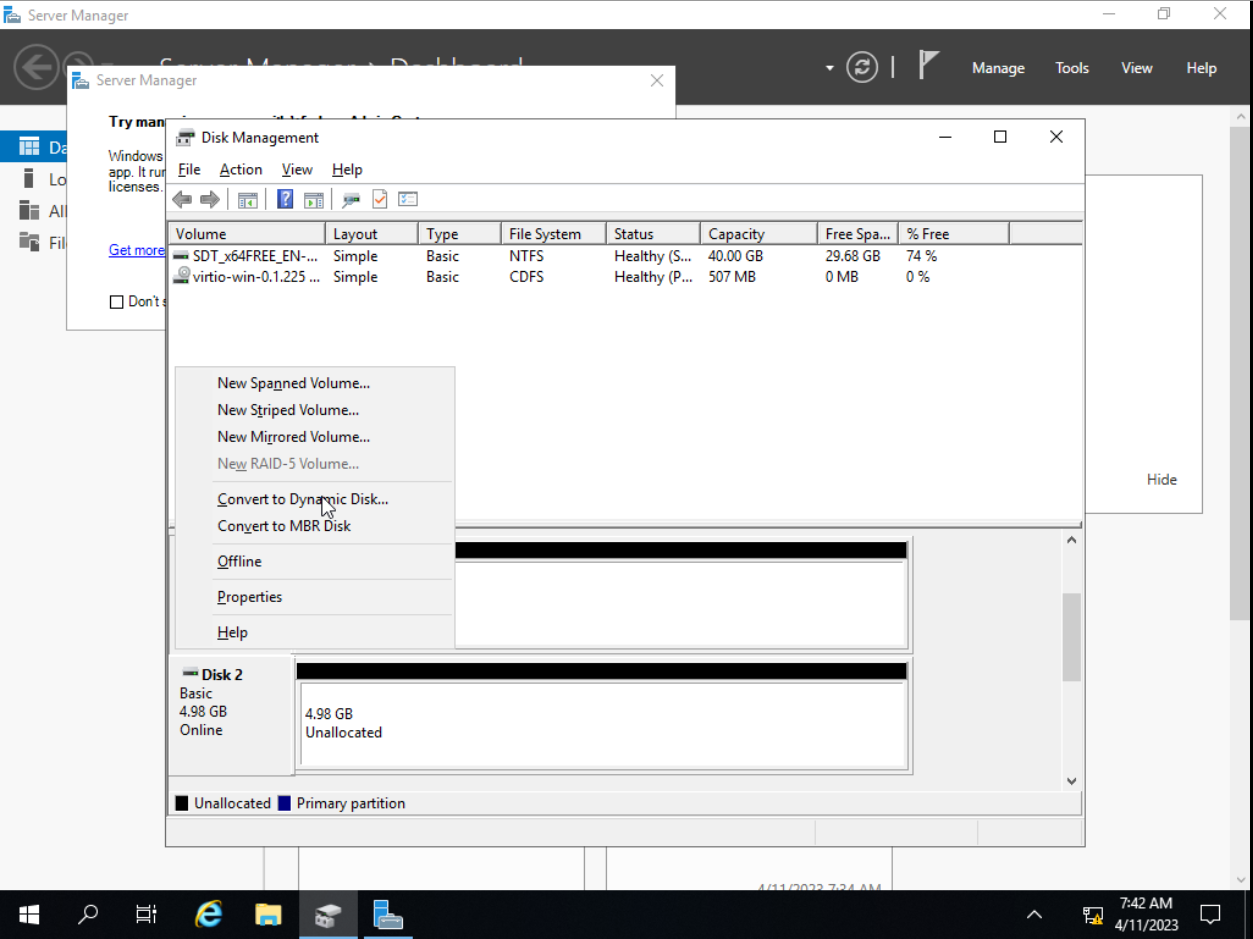

Преобразовать в Dynamic

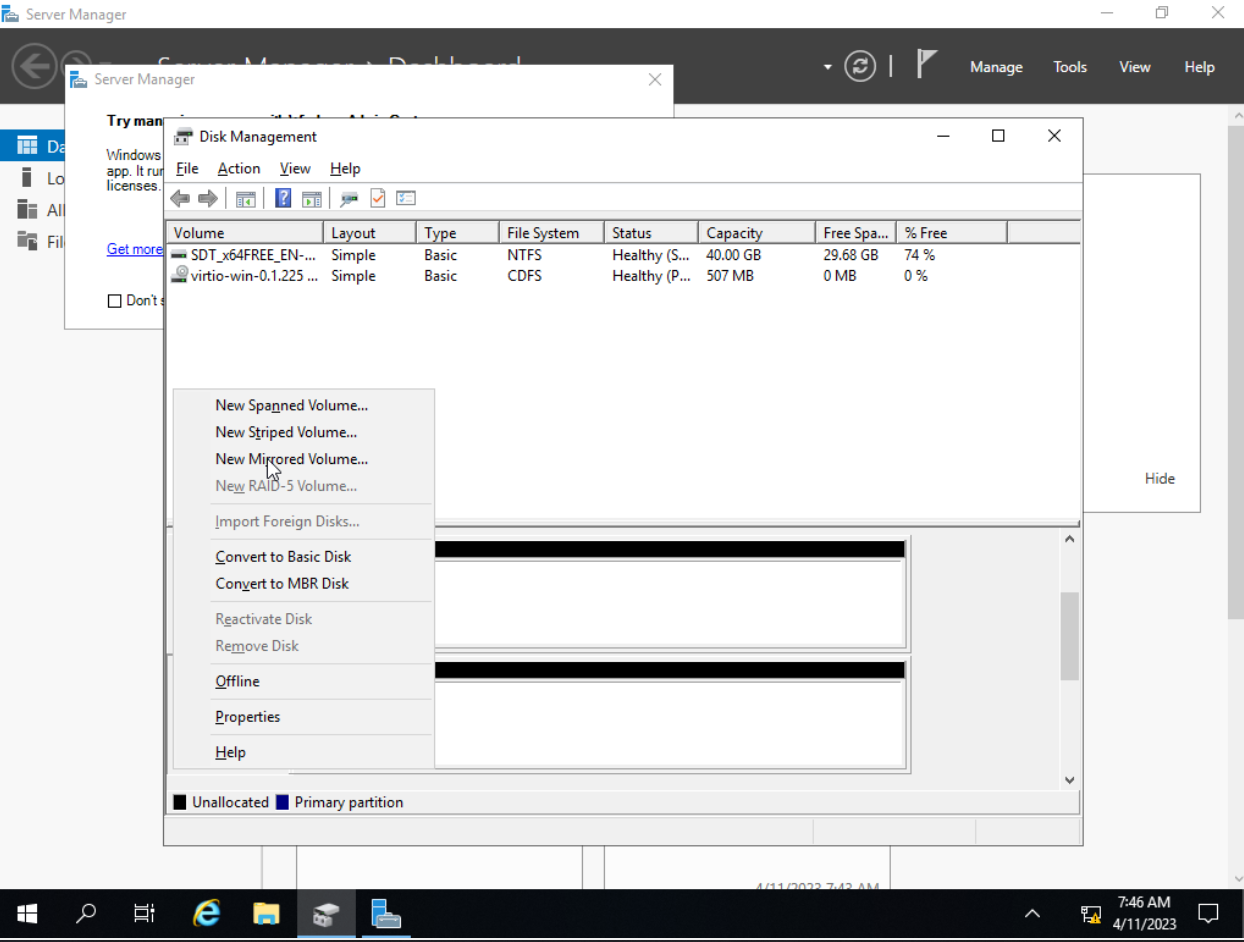

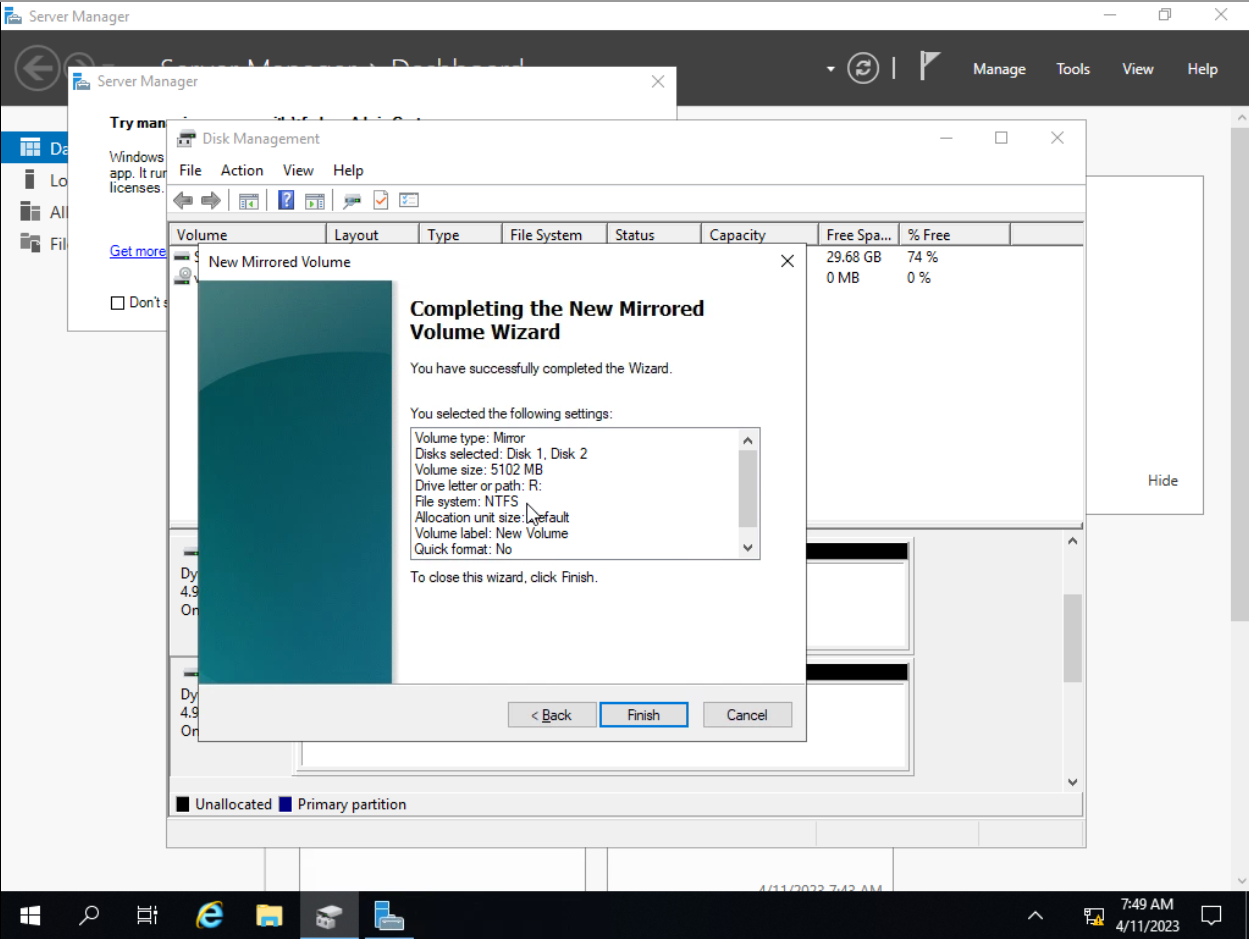

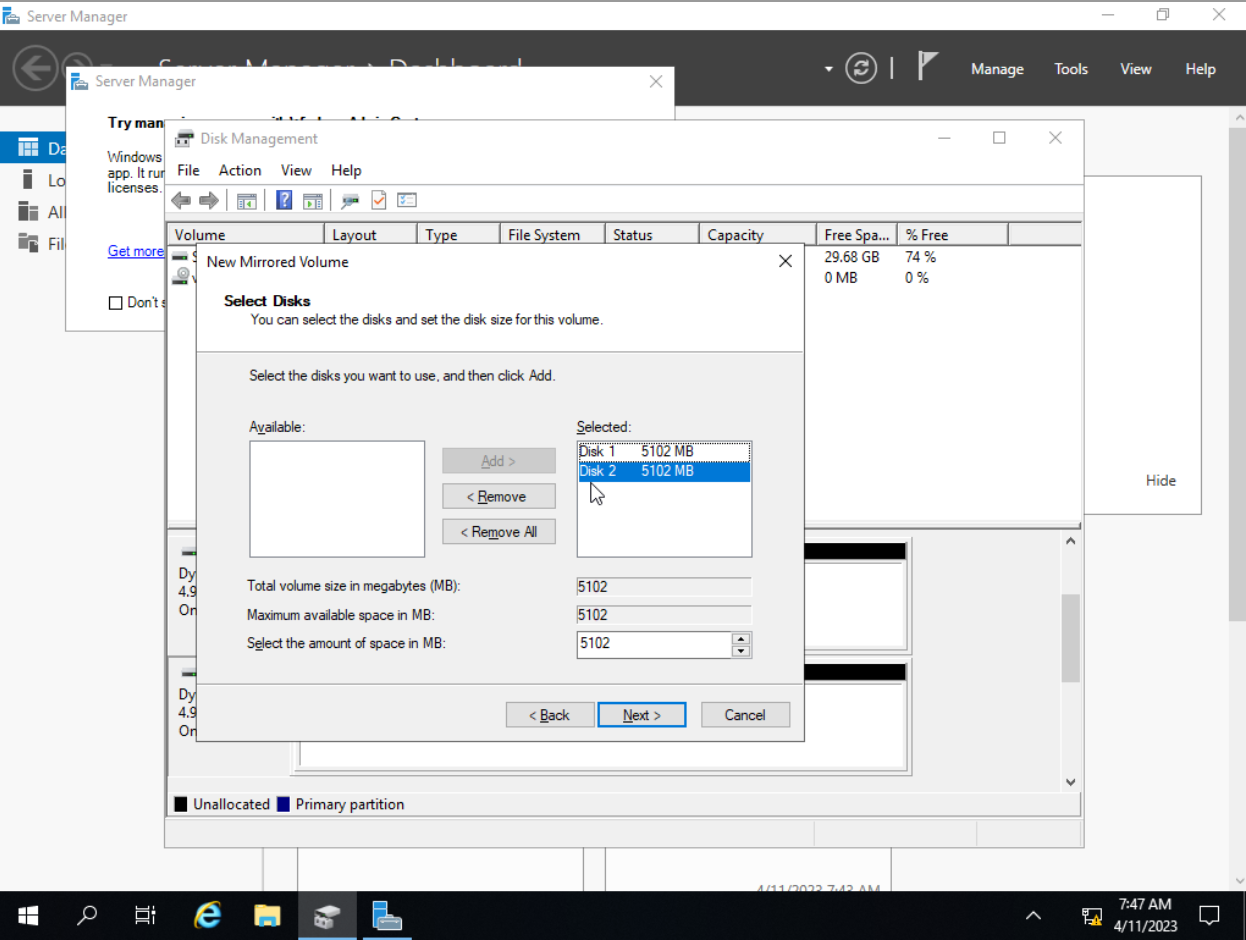

Создать Mirrored

В Демонстрационном экзамене возможно будет 2 варианта удаленного хранилища: iSCSI или SMB

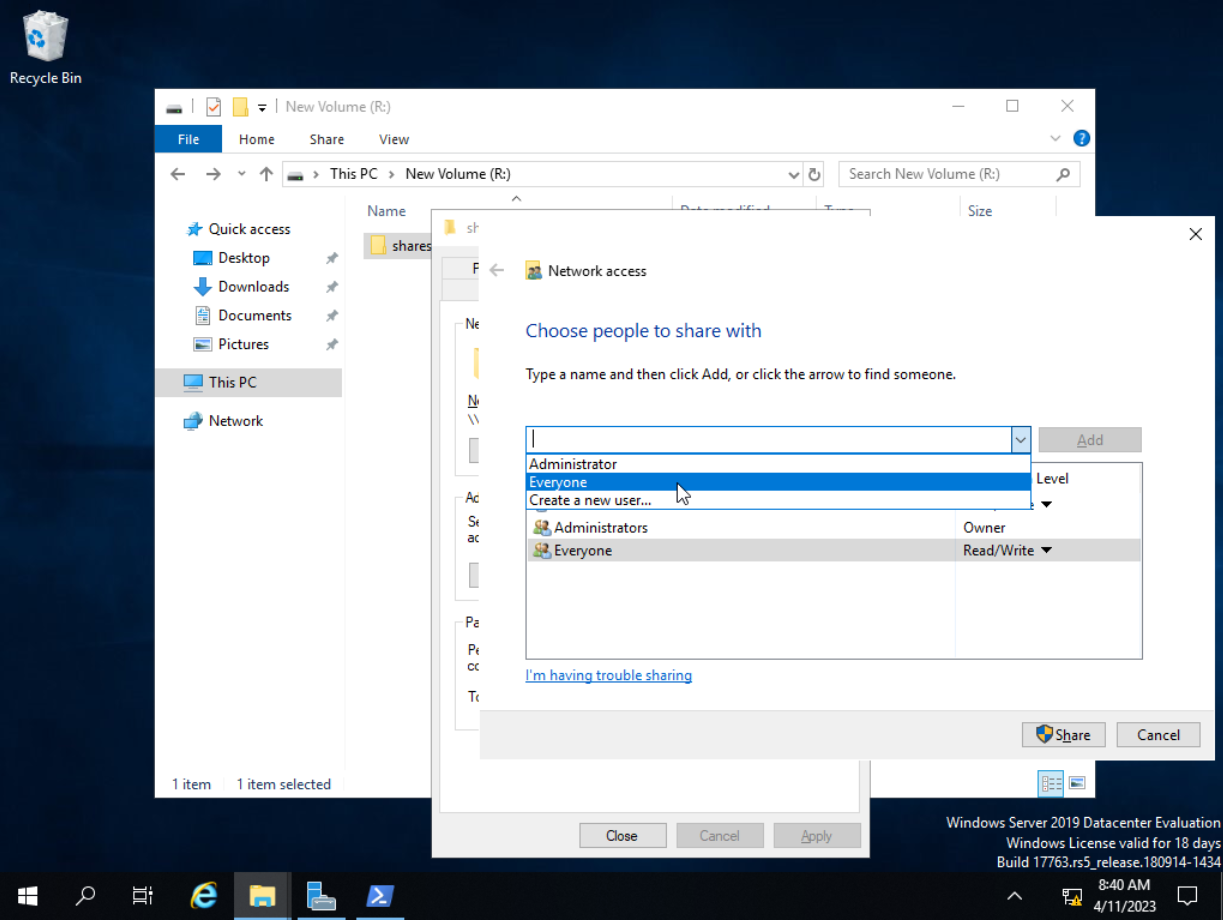

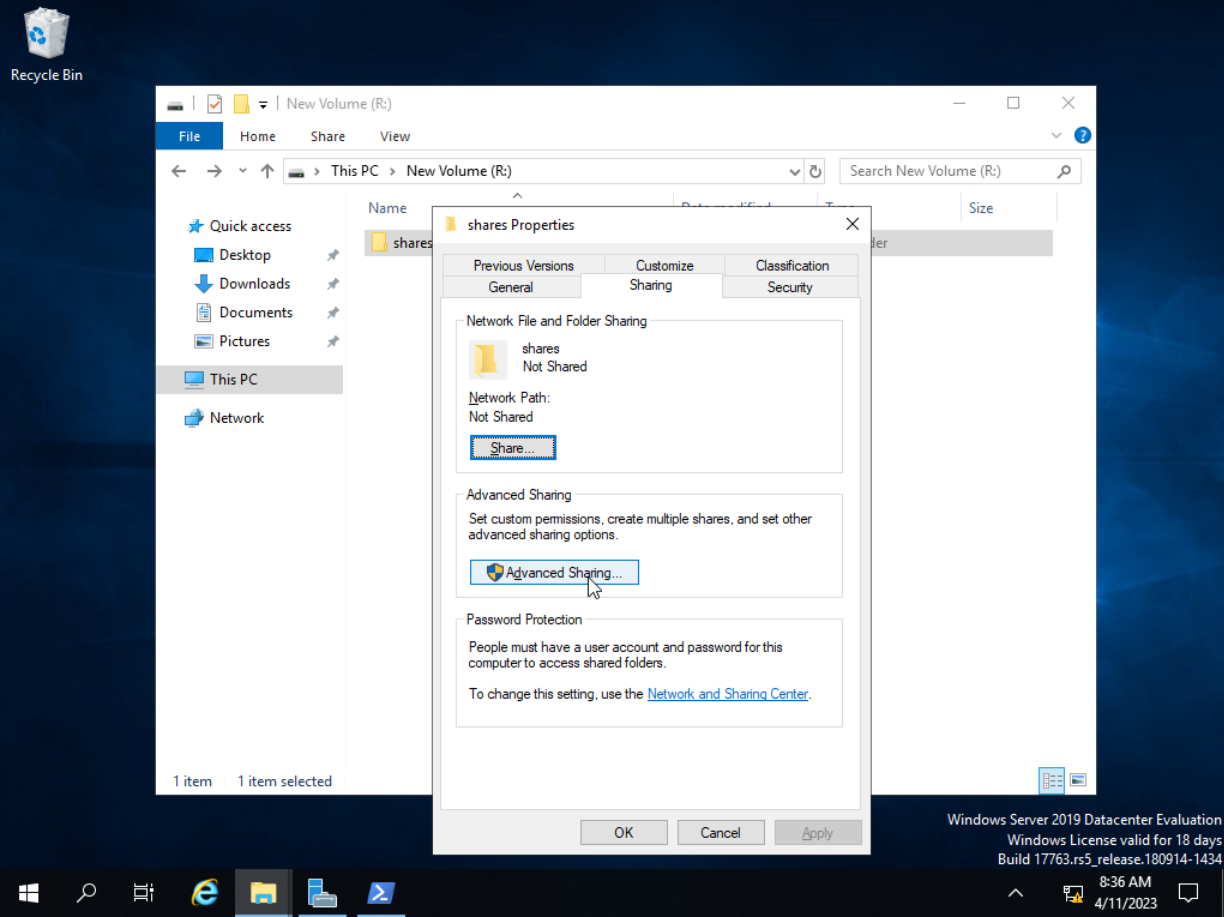

SMB server

iSCSI

[Короче, сами найдете.]

WEB-L

login: root

Password: toor

#echo "WEB-L" > /etc/hostname && reboot

#vim /etc/network/interfaces

auto ens3
iface ens3 inet static
    address 192.168.100.100
    netmask 255.255.255.0
    dns-nameservers 192.168.100.200
    gateway 192.168.100.254

{press Esc}
:wq

#reboot

#mount -o loop /dev/cdrom /media/cdrom

#docker image load -i /media/cdrom/appdocker0.zip

#docker run -p 5000:5000 -d appdocker0:latest

#vim /etc/chrony/chrony.conf

Удаляем все записи peer, pool, server и добавляем:

server 192.168.100.200 iburst

{press Esc}
:wq

SMB client

#vim /root/.smb

username=Administrator
password=P@ssw0rd

{press Esc}
:wq

#mkdir /opt/share

#vim /etc/fstab

Добавляем:

//192.168.100.200/shares /opt/share cifs user,rw,_netdev,credentials=/root/.smb 0 0

{press Esc}
:wq

iSCSI

[Короче, сами найдете.]

WEB-R

login: root

Password: toor

#echo "WEB-R" > /etc/hostname && reboot

#vim /etc/network/interfaces

auto ens3
iface ens3 inet static
    address 172.16.100.100
    netmask 255.255.255.0
    dns-nameservers 192.168.100.200
    gateway 172.16.100.254

{press Esc}
:wq

#reboot

#mount -o loop /dev/cdrom /media/cdrom

#docker image load -i /media/cdrom/appdocker0.zip

#docker run -p 5000:5000 -d appdocker0:latest

#vim /etc/chrony/chrony.conf

Удаляем все записи peer, pool, server и добавляем:

server 192.168.100.200 iburst

{press Esc}
:wq

#systemctl restart chronyd

SMB

#vim /root/.smb

username=Administrator
password=P@ssw0rd

{press Esc}
:wq

#mkdir /opt/share

#vim /etc/fstab

Добавляем:

//192.168.100.200/shares /opt/share cifs user,rw,_netdev,credentials=/root/.smb 0 0

{press Esc}
:wq

iSCSI

[Короче, сами найдете.]

DEMOEXAM_2023(НЕАКТУАЛЬНО!!)

RTR-L

RTR-R

ISP

SRV

DNS

NTP

Диски

SMB server

iSCSI

WEB-L

SMB client

iSCSI

WEB-R

SMB

iSCSI

CLI
